Timeless all-road intercity machine
Introducing the new Pelago Wellamo X30 —an e-bike crafted for those who appreciate timeless design, practical mobility, and the freedom to ride further with ease. Built with the same attention to detail and durability that define Pelago’s classic bicycles, this modern electric bike seamlessly blends the Pelago aesthetics with cutting-edge technology.
Pelago Wellamo is a comfortable choice for daily commutes and light touring.
Classic Pelago feel, now with more ease

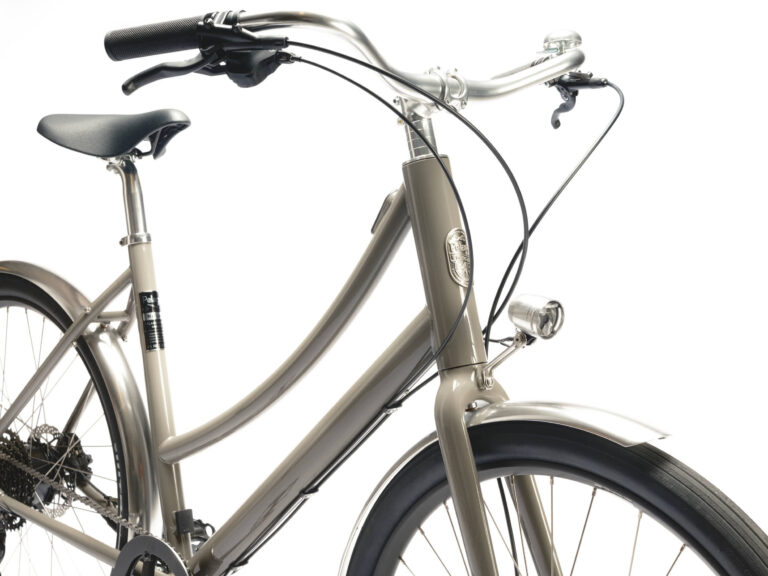

Pelago Wellamo has a classic step-through frame made of lightweight cromoly steel. This ensures easy access and comfortable upright riding position, and a smooth, stable ride. A fully integrated 250 wh battery keeps the frame clean and uncluttered, delivering effortless pedal assist without compromising style. At just 19 kg, the bike remains agile and easy to handle—lighter than most e-bikes.
With rack eyelets in the fork and rear, it’s fully compatible with Pelago’s racks, baskets, and accessories, making it adaptable for commuting, touring, or everyday rides.
Choose between two frame sizes.

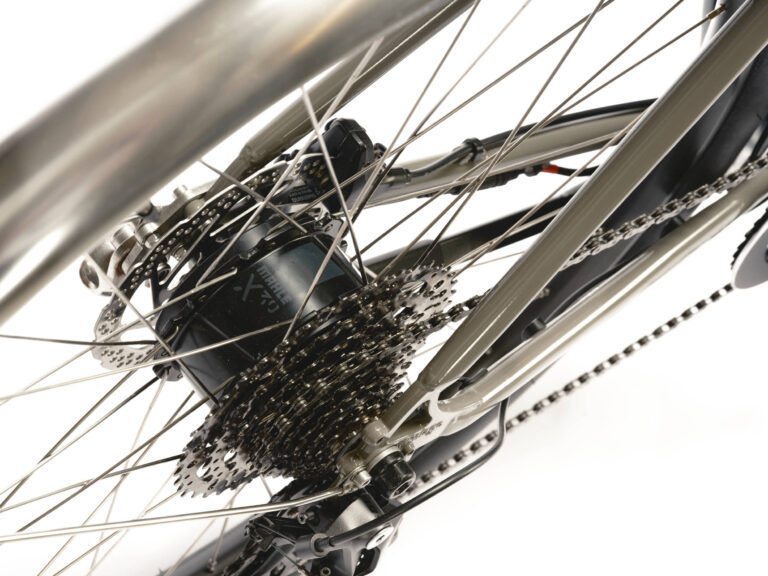

Mahle X30 Motor System – Reliable and smooth
The Mahle X30 rear hub motor provides a natural and seamless assist with 44 Nm of torque—perfectly balanced for urban commuting and light touring. Designed to enhance your ride without overpowering it, the motor delivers just the right amount of support when accelerating, climbing hills, or carrying extra gear.
A fully charged battery offers a range of up to 90 km, giving you the freedom to explore further—whether it’s a daily commute or a weekend ride beyond the city.

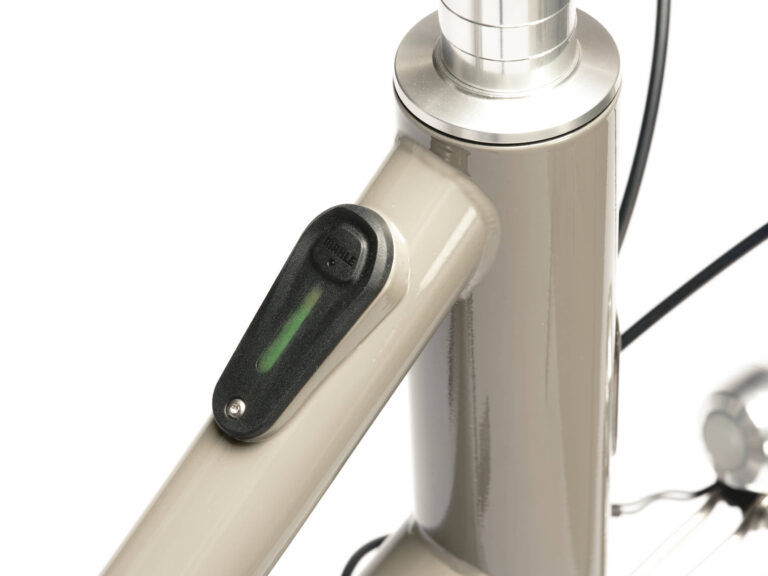

Easy display unit
The Mahle head unit is integrated into the bike’s top tube, allowing you to power the e-bike on or off, and switch between three levels of assistance for a smooth and intuitive ride.
With the Mahle SmartApp you can track your rides and fine tune your individual support modes.
• Frame size (1) is measured from the center of the Bottom Bracket Axis to the top of the Seat Tube (C-T).
• Rider Height suggests the average sizing for the bike-rider fit. If your height is between two sizes, choose the smaller size for more comfortable riding position.
• Stand Over Height (2) tells the height of the top tube measured from the ground. Your Inseam should always be higher than the Stand Over Height. (2)
| FRAME | Pelago X30 Step-thru Cr-Mo, Post mount, 10 x 136,5 mm |
| FORK | Pelago X30 Aluminium, Post mount, 12 x 100 mm thru axle |
| MOTOR TYPE | Mahle X30 |
| PEDAL ASSIST MAX | 25 km/h |
| POWER | 240 W |
| BATTERY TYPE & Capacity | Mahle X-Series, 250 Wh |
| DISPLAY | Mahle frame integrated X-Series head unit |
| STEM | Aluminium, 90 mm, 31.8 mm |
| HEADSET | Token A-Box integrated |
| SEATPOST | Pelago 31,6×350 mm |
| SADDLE | Pelago City Wide |
| CRANK | 130 BCD, 42T, 24 spindle |
| PEDALS | ALUMINIUM |
| BRAKES | Shimano Deore MT401 Hydraulic brakes, 160 mm rotors |
| SHIFT LEVER | Shimano Deore M5130 Rapidfire Plus |
| REAR DERAILLEUR | Shimano Deore M5130 Shadow RD+ 10-speed |
| CASSETTE | Shimano Cues LG400 10-speed 11-43T |
| CHAIN | Shimano LINKGLIDE LG500 |
| FENDERS | Aluminium, 60 mm |

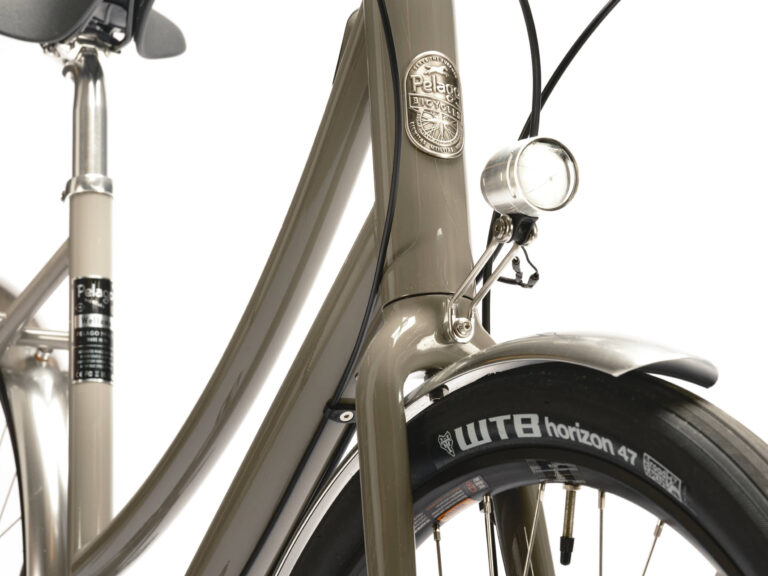

| FRONT LIGHT | B&M LUMOTEC IQ-XS T E |
| REAR LIGHT | Herrmans H-Trace Mini |
| BELL | Pelago Aluminium |
| KICKSTAND | Ursus MOOI |
| RIMS | WTB ST 25mm 27.5″/650b |
| SPOKES | 14G Stainless, 14mm Brass nipples |
| FRONT HUB | 12X100 mm Thru-axle |
| REAR HUB | Mahle X30 Hub motor |
| TYRES | WTB Horizon 47 mm |
| BOTTOM BRACKET | Shimano BB-MT501, BSA 73 MM |
| TIRE CLEARANCE | 45-622 & 50-584 with fenders, 50-622 & 57-584 without fenders |
| WEIGHT | 19kg (size S/M) |
| WEIGHT CAPACITY | 130 kg (rider + luggage) |
ALL MEASUREMENTS PROVIDED IN MM UNLESS OTHERWISE STATED.
|
SIZE |
SYMBOL | M/52 | L/57 |
|---|---|---|---|
| EFFECTIVE TOP TUBE LENGTH | A | 570 | 590 |
| SEAT TUBE LENGTH | B | 510 | 560 |
| STAND OVER HEIGHT | C | 530 | 540 |
| STEERING ANGLE | D | 70° | 70° |
| SEAT TUBE ANGLE | E | 72° | 72° |
| HEAD TUBE | F | 232 | 271 |
| CHAINSTAY LENGTH | G | 440 | 440 |
| BB DROP | H | 60 | 60 |
| STACK | I | 630 | 667 |
| REACH | J | 365 | 373 |
| FORK RAKE | K | 65 | 65 |
| WHEELBASE | L | 1057 | 1078 |
| RIDER HEIGHT | 155-170 cm | 170-185 cm |
All dimensions are preliminary and are subject to change.
