Stavanger Frameset

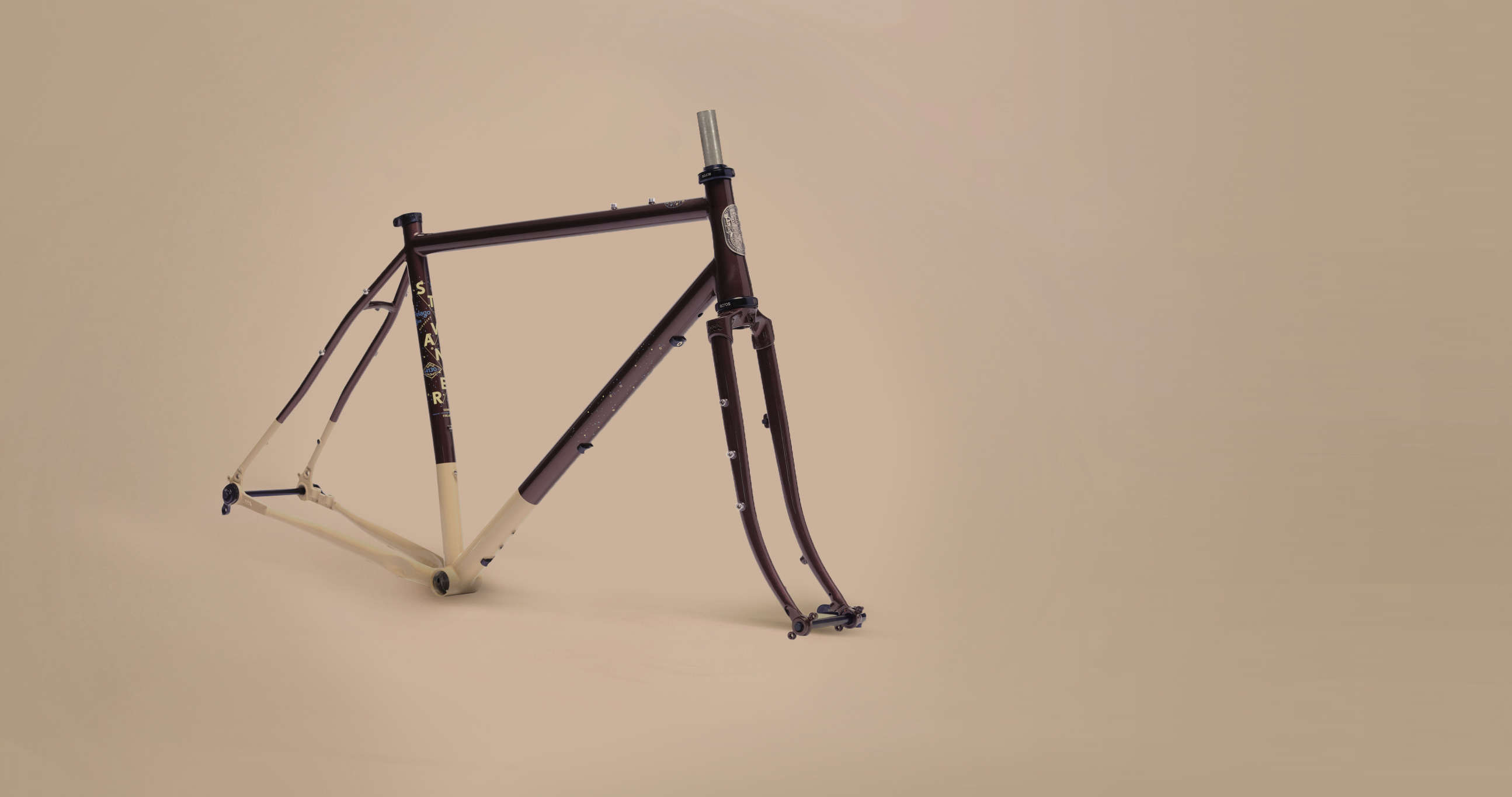

Pelago Stavanger now available also as a frameset. No matter where you ride, the rigid CrMo frame offers plenty of options for customization. Charcoal Walnut and Grey Terra colors in pre-order. Estimated delivery in August.

CONFIGURE

Charcoal walnut

Grey terra

Lilametal

42cm
146cm-152cm

45cm
152cm-158cm

48cm
158cm-164cm

51cm
164cm-172cm

54cm
172cm-180cm

57cm
180cm-186cm

60cm
186cm-194cm

63cm
194+cm

RACKS

FRONT RACK ALUMINIUM LARGE BLACK

FRONT RACK ALUMINIUM LARGE POLISHED

FRONT RACK ALUMINIUM MEDIUM BLACK

FRONT RACK ALUMINIUM MEDIUM POLISHED

FRONT RACK STAINLESS LARGE BLACK

FRONT RACK STAINLESS LARGE POLISHED

FRONT RACK STAINLESS MEDIUM BLACK

FRONT RACK STAINLESS MEDIUM POLISHED

REAR RACK BLACK

REAR RACK POLISHED

FORK RACK

LOWRIDER PANNIER SUPPORT BLACK

LOWRIDER PANNIER SUPPORT POLISHED

RASKET BLACK

RASKET POLISHED

OTHERS

ACROS CROWN RACE 1.5"

COLUMBUS FUTURA CROSS+ CARBON FORK

PELAGO EC34/EC44 THREADLESS TAPER HEADSET BLACK

PELAGO EC34/EC44 THREADLESS TAPER HEADSET SILVER

SHIMANO PD-GR400 FLAT PEDALS BLACK

SHIMANO PD-T8000 XT TOURING SPD PEDALS

SHIMANO PDM520 SPD PEDALS

LOCKS

KRYPTONITE EVOLUTION MINI-9 LS U

BAGS

PELAGO RACKBAG MEDIUM GREEN

PELAGO TOTEPACK LARGE

PELAGO TOTEPACK MEDIUM

Stavanger-frameset

0.00

TOTAL

0.00

ORDER Find a local dealer

Stavanger - It is all about versatility

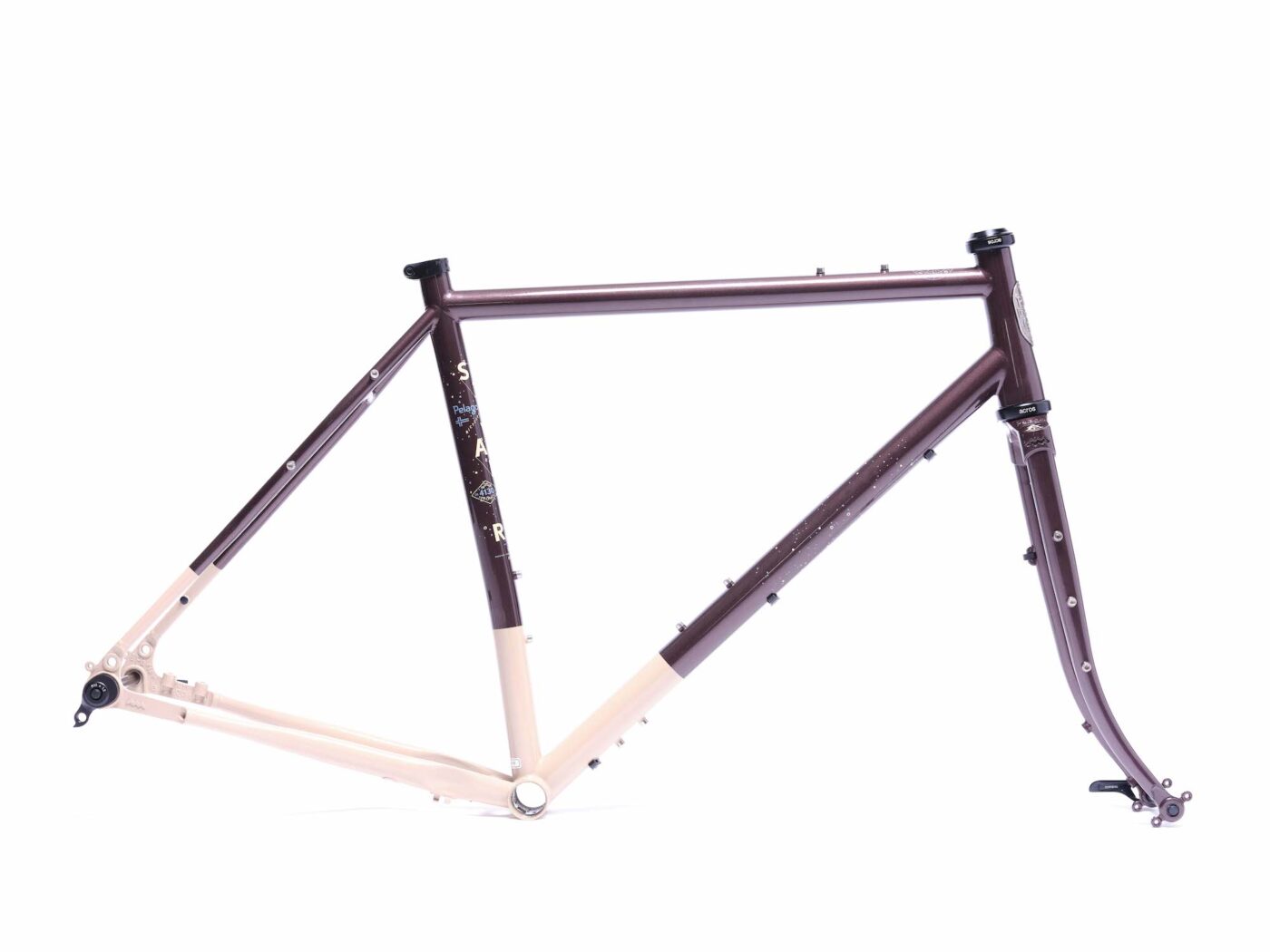

New Stavanger, now available also as a frameset
The easiest way to describe the completely updated Pelago Stavanger is to talk about versatility. Stavanger is truly the most versatile Pelago bike and it serves multiple purposes without sacrificing anything.

Compared to the original Pelago Stavanger, new model has a lot more features from the look to the technical specifications. Stavanger’s size range has broaden a lot and now riders from 146cm to approximately 210cm can enjoy this bike without a problem.

Stavanger frameset comes with a new selection of features, but also a new colorway and decals. The design of the bike is timeless – just like any other Pelago bike.

Plenty of options for customisation
The new Pelago Stavanger is updated by adding features we thought were missing in the frames of Stavanger Outback and Stavanger Commuter. With wide range of sizes (from 146cm to 210cm riders), well thought details, multipurpose geometry and multifunctional features, Stavanger is your choice. Multifunctional features include great tire clearance, great fender clearance, dropper post ready, carbon fork capability and Di2 ready – just to name a few things.

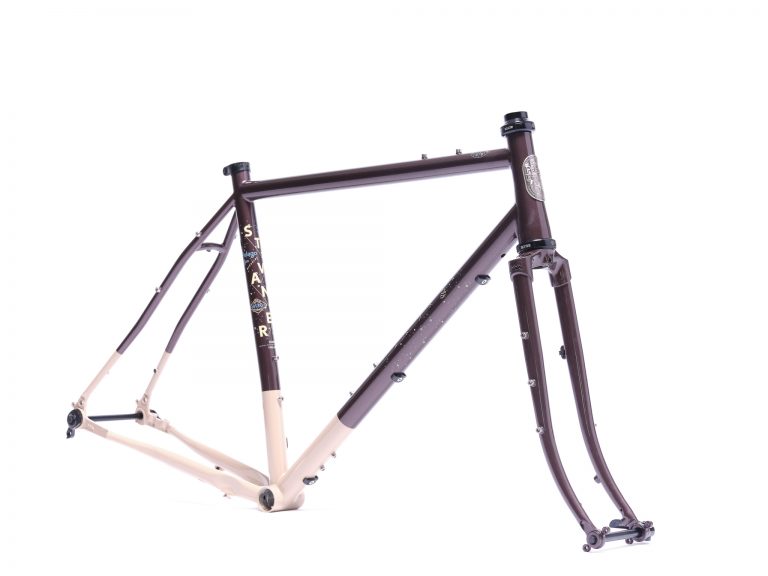

New Stavanger frameset comes also with thru axles as we moved on from quick release with this model. Tapered headtube allows you to add carbon fork easily and great selection of different kinds of mounting points will keep your water bottles, racks and fenders in the right place. The rigid CrMo frame offers plenty of options for customization.

Key Features

• F/R 12 mm thru axles

• Tapered head tube for steel & carbon forks

• Minimized toe-overlap

• Adoptable for 700c and 650B wheels

• Oversize double butted Cr-Mo tubing for rigidity

• Bottom bracket remains BSA

• Lots of mounts for racks, bags, bottles, fenders, etc

• Dropper post & Di2 ready

• BIKEPACKING.COM REVIEW

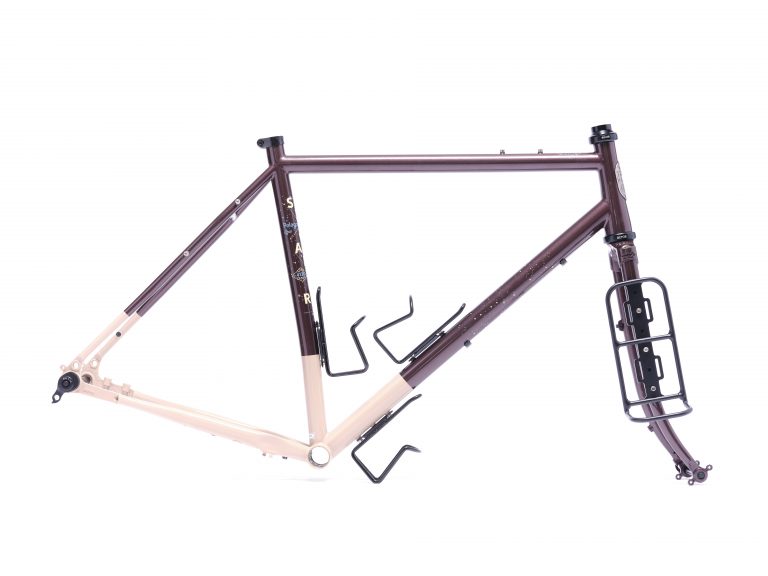

Three mounting points for water bottle cages: two inside the main triangle and one below the downtube. The top tube also has features mounting points for tank bags or whatever you may come up with.

Custom Dropouts. Dropouts have a detachable derailleur hanger (designed by Paragon Machine Works) and can be easily changed in case it breaks. Paragon hangers are widely available should you need to replace it. The dropout also has separate mounting slots for a trailer.

Pelago Stavanger - An adventure-ready all-road bike. Made for fast gravel riding, heading out for bikepacking or long distance randonneuring. The rigid CrMo frame offers plenty of options for customization.

Bottom bracket remains BSA. The BB is the same as in the older Stavanger (68mm BSA).The BSA has threads, which makes them a reliable option.They are also widely used and their availability will remain good for years to come. Di2 ready. Cable routing inside the tube enables hidden wiring for Shimano Di2 gears.

Frametubes are wider and thinner than in the old Stavanger. The updated tubes are butted to 08/05/08 which is slimmed down from 09/06/09. Bigger diameter makes the frame stiffer which is a good feature especially when carrying stuff on a bike. Internal butting makes the headtube joints strong. Tubing is Taiwan made chromo, the frame is electroplated for corrosion protection and finished with durable powder coating.

The new fork has a new custom crown enabling wider tire clearance. The fork also offers a selection of different mounting points for bottles or anything- cages. Naturally, it also has the eyelets for racks and fenders. Rear triangle also has mounting points for mudguards and rear racks and additional mounting points for the saddle bag rack.

Sizes

• Frame size (1) is measured from the center of the Bottom Bracket Axis to the top of the Seat Tube (C-T).

• Rider Height suggests the average sizing for the bike-rider fit. If your height is between two sizes, choose the smaller size for more comfortable riding position.

• Stand Over Height (2) tells the height of the top tube measured from the ground. Your Inseam should always be higher than the Stand Over Height. (2)

Tech Specs

COLOUR	Charcoal Walnut, Grey Terra, Lilametal
SIZES	42 / 45 / 48 / 51 / 54 / 57 / 60 / 63
FRAME	Double butted, oversize, 4130 Cr-Mo tubing, TIG-welded
FORK	Casted Crown 4130 Cr-Mo, 58 mm rake
BOTTOM BRACKET	68mm BSA
BRAKES	Flat Mount, up to 160mm rotors
GEARING	1X / 2X (2X compatible with Gravel/Road Wide chain line and max 48T chainring)
SEAT POST	27,2 mm w/ incl. shim
HEADSET	Top EC34 Bottom EC44, Not included, Headset specs here
ACCESSORIES	Carriers front and rear, frame lock, lights, grips, basket
TIRE CLEARENCE	45-622 / 50-584 With fenders, 50-622 / 57-584 Without fenders
AXLES	Rear 142/12 mm thru axle, Front 100/12 mm thru axle
BRAZE-ONS	Bottle mounts on ST, 2x DT & fork, fenders, racks, light cable routing
WEIGHT	Frame 2,64 kg (size 54), Fork 1,2 kg

NOTE! Frames are not prepared before shipping. Please prepare the frame according to the manual.

Geometry

SIZE	42	45	48	51	54	57	60	63
EFFECTIVE TOP TUBE LENGTH	505	520	535	555	575	595	610	625
SEAT TUBE LENGTH	420	450	480	510	540	570	600	630
STANDOVER HEIGHT (mm)	725	747	768	798	822	852	886	916
STEERING ANGLE	70°	71°	72°	72,5°	72,5°	72,5°	72,5°	72,5°
SEAT TUBE ANGLE	75°	74,5°	74°	73,5°	73°	73°	73°	73°
HEAD TUBE	96	96	107	133	155	188	225	257
CHAINSTAY LENGTH	428	428	428	428	428	434	434	440
BB DROP	70	70	70	65	65	65	60	60
STACK (mm)	515	529	543	565	586	618	648	679
REACH (mm)	371	377	384	393	401	410	415	421
FORK RAKE	58	58	58	58	58	58	58	58
WHEELBASE	1016	1019	1021	1034	1049	1075	1092	1112
RIDER HEIGHT	146-152 cm	152-158 cm	158-164 cm	164-172 cm	172-180 cm	180-186 cm	186-194 cm	194-210 cm

All dimensions are preliminary and are subject to change.
